SO, there is this online PDF file with a table in it.
I need to put this as a one whole table in Excel.
Any thoughts?

Link to the file:
https://finance.ec.europa.eu/system/files/2023-03/faqs-sanctions-russia-export-related-restrictions-russia_en.pdf


Posted : 25/05/2023 8:50 am
Alan Sidman
(@alansidman)
Posts: 220
Member Moderator


There are 76 tables in this file. Do you know which ones you want?


Posted : 25/05/2023 3:34 pm
(@neshas)
Posts: 26
Eminent Member
Topic starter


All of them as one table, on one sheet.


Posted : 26/05/2023 2:26 am
Riny van Eekelen
(@riny)
Posts: 1185
Member Moderator


Not sure what you want to do with it but the following query will generate one large table with 3630 rows. But it's not pretty. Just point the Source step to the PDF on your own machine.

let
Source = Pdf.Tables(File.Contents("C:datafaqs-sanctions-russia-export-related-restrictions-russia_en.pdf"), [Implementation="1.3"]),
#"Expanded Data" = Table.ExpandTableColumn(Source, "Data", {"Column1", "Column2", "Column3", "Column4", "Column5", "Column6", "Column7", "Column8", "Column9", "Column10", "Column11", "Column12", "Column13", "Column14", "Column15", "Column16", "Column17", "Column18", "Column19", "Column20", "Column21", "Column22", "Column23", "Column24", "Column25", "Column26", "Column27", "Column28", "Column29", "Column30", "Column31", "Column32", "Column33", "Column34", "Column35", "Column36", "Column37", "Column38", "Column39", "Column40", "Column41", "Column42", "Column43", "Column44"}, {"Column1", "Column2", "Column3", "Column4", "Column5", "Column6", "Column7", "Column8", "Column9", "Column10", "Column11", "Column12", "Column13", "Column14", "Column15", "Column16", "Column17", "Column18", "Column19", "Column20", "Column21", "Column22", "Column23", "Column24", "Column25", "Column26", "Column27", "Column28", "Column29", "Column30", "Column31", "Column32", "Column33", "Column34", "Column35", "Column36", "Column37", "Column38", "Column39", "Column40", "Column41", "Column42", "Column43", "Column44"}),
#"Merged Columns" = Table.CombineColumns(Table.TransformColumnTypes(#"Expanded Data", {{"Column28", type text}, {"Column29", type text}, {"Column30", type text}, {"Column31", type text}, {"Column32", type text}, {"Column33", type text}, {"Column34", type text}, {"Column35", type text}, {"Column36", type text}, {"Column37", type text}, {"Column38", type text}, {"Column39", type text}, {"Column40", type text}, {"Column41", type text}, {"Column42", type text}, {"Column43", type text}, {"Column44", type text}}, "en-GB"),{"Column1", "Column2", "Column3", "Column4", "Column5", "Column6", "Column7", "Column8", "Column9", "Column10", "Column11", "Column12", "Column13", "Column14", "Column15", "Column16", "Column17", "Column18", "Column19", "Column20", "Column21", "Column22", "Column23", "Column24", "Column25", "Column26", "Column27", "Column28", "Column29", "Column30", "Column31", "Column32", "Column33", "Column34", "Column35", "Column36", "Column37", "Column38", "Column39", "Column40", "Column41", "Column42", "Column43", "Column44"},Combiner.CombineTextByDelimiter(" ", QuoteStyle.None),"Doc")
in
#"Merged Columns"


Posted : 26/05/2023 3:51 am
(@neshas)
Posts: 26
Eminent Member
Topic starter


OK Riny van Eekelen, I'm open for any other better and simpler way to get this tables into one Excel table. Any other suggestions?


Posted : 27/05/2023 3:52 am
Riny van Eekelen
(@riny)
Posts: 1185
Member Moderator


Not sure what you mean. The query works and I can't think of another way to approach this. But the end result isn't pretty. But perhaps it works for you.


Posted : 27/05/2023 4:38 am
(@neshas)
Posts: 26
Eminent Member
Topic starter


OK, so at the beginning when importing a file (from my machine), what tables did you choose?

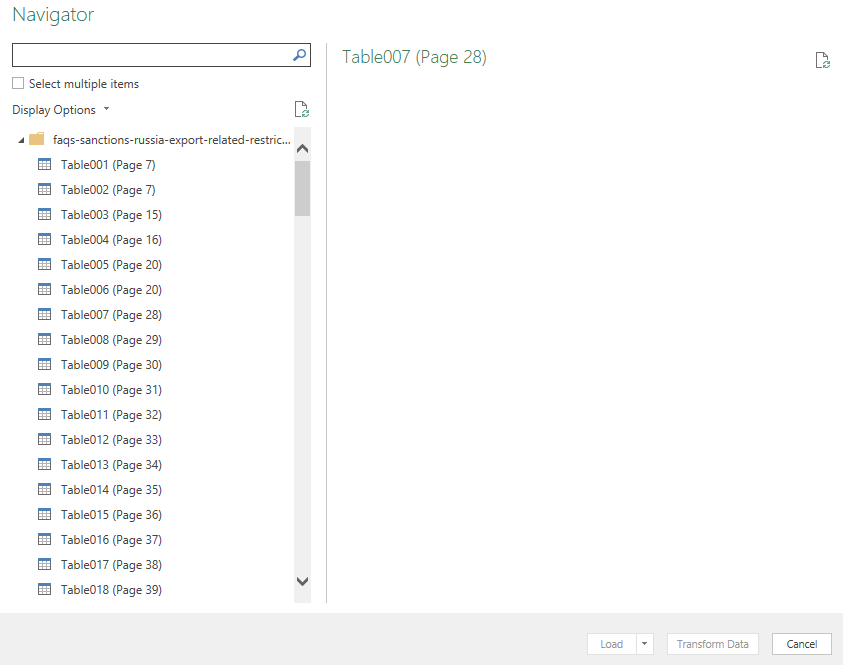

see attachmentpdf.png


Posted : 28/05/2023 3:05 am
Alan Sidman
(@alansidman)
Posts: 220
Member Moderator


Nesha
Your picture is exactly what I get when I wish to import your PDF. Click on the Select multiple tables and then select them. This will gen the Mcode you need. Not sure what else you are looking for. As Riny stated it works but it is not pretty.
Alan


Posted : 28/05/2023 3:13 am
Riny van Eekelen
(@riny)
Posts: 1185
Member Moderator


I did not select the 'Multiple items' box for reason. Selected just one of the tables. Doesn't matter which one. Then delete the Navigation step that PQ generates and you are left with a table containing a Data column of all pages with or without tables in the same order as you find them in the PDF. Now you can expand that column and merge all of them into one.

Selecting 'Multiple items' will generate 76 separate queries. Tables first, then pages. These would then have to be appended to each other in the correct order. Quite some work that can be avoided when you follow the steps I described above.


Posted : 28/05/2023 3:54 am
(@neshas)
Posts: 26
Eminent Member
Topic starter


Well, I've done as you Riny suggested, and it's really ugly, can't use it.
As I look at this PDF, I think that who ever created it, must have gone through some 'table' app, can't imagine they've done it in Word for example, so I thought it could be some (better) way to make these PDF tables nest in Excel...


Posted : 29/05/2023 2:59 am
