XML data source

5 Posts
2 Users
0 Reactions
154 Views
(@culsh)
Posts: 43
Trusted Member
Topic starter


My XML file has multiple tables that I have been able to expand.   However when a record within one of the expanded table columns has another table, instead of the value, I don't know how to expand it for the whole column.  I am unable to filter that column based on the value "table" as that is not a value that appears in the filter.

My data consists of student records that contains a Program Eligibility table, with one column containing a program code.  A student may be eligible for more than one program in which case the expanded table column reports some cells with "table" as opposed to the eligibility code.  How do I expand each of those "nested tables" for those records that have them?


Posted : 29/08/2018 1:40 pm
(@catalinb)
Posts: 1937
Member Admin


Hi Cheryl,

Each case is different and needs different solutions. Can you upload a sample xml file?


Posted : 30/08/2018 4:18 am
(@culsh)
Posts: 43
Trusted Member
Topic starter

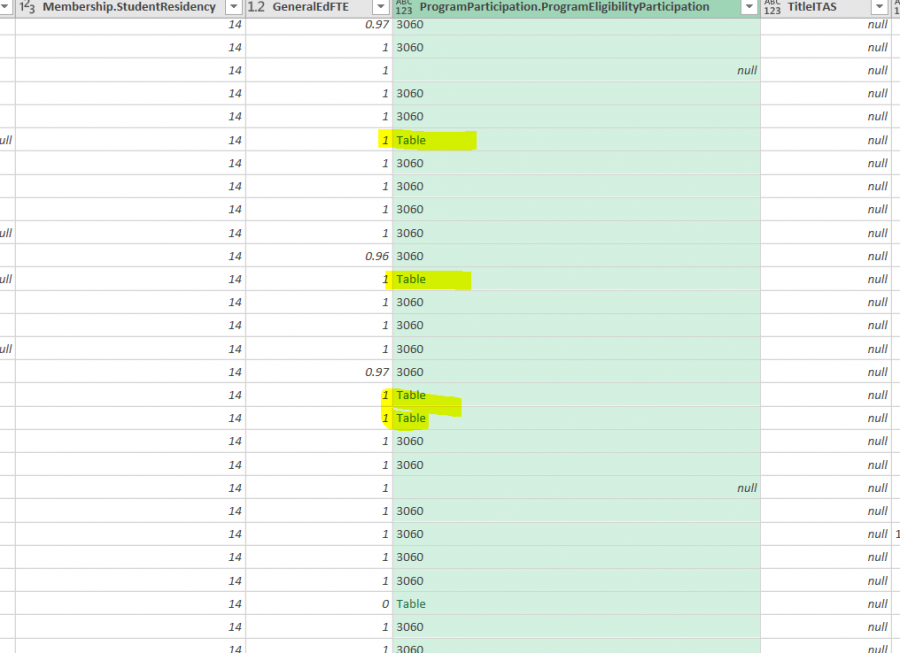

Unfortunately I cannot share a sample .xml because it contains too much personal data that I am not able to share, and recreating this would be challenging as I receive the .xml files from another source and don't create them myself.  I can include some screen shots here that may be helpful to explain.

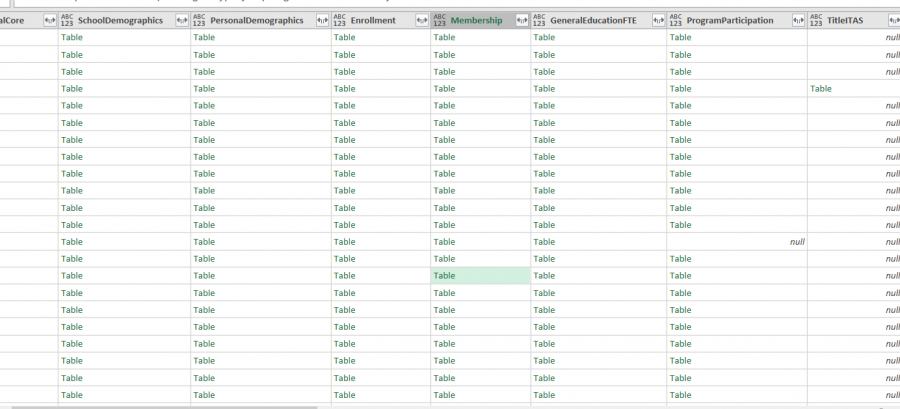

I can expand most columns without a problem and get one record per row within the columns. However the "Program Participation" column causes problems because sometimes it includes several "records" for each row and that is when I have trouble and don't know how to expand those tables in all of the cells.  They are basically nested and I can't filter just those cells either. as they don't show up in my filter, except as an error if I change the data type.



Posted : 30/08/2018 11:42 am
(@catalinb)
Posts: 1937
Member Admin


You can try moving the tables into another column, by adding another column with this formula:

=if Value.Is([ColumnName],type table)=true then [ColumnName] else null

You should be able to expand the new column, as it will have a single data type, tables.

Or, if this is enough for you, that table can be converted to a text string with all the values.


Posted : 30/08/2018 2:21 pm
(@culsh)
Posts: 43
Trusted Member
Topic starter


Works!  thank yu!!!!


Posted : 31/08/2018 12:12 pm
